Mr.robot vr-1.0 (2013)

Sunday, August 23, 2015



This is my robot for many purposes ,made using arduino and some other sensors. This robot can function as obstacle avoider, bluetooth controlled robot etc. it sense fire ,smoke,gas and any of them detected it make alarm sound. We can use this robot in home for security and use as pet.



Let's start making





Parts you need -


Arduino
Circuits like fire alarm etc





Arduino

l293d motor controller


Hc-sr06
Motor

Some plastic tins

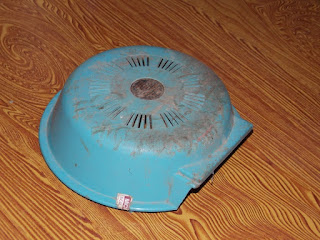

Some pics on making this

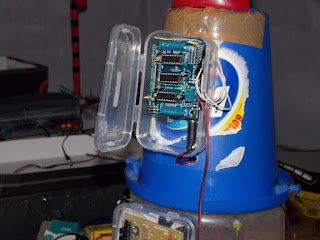

Adding ldr alarm system alarm



Adding smoke alarm










Adding fire alarm










Adding fm transmitter








Adding main parts like arduino board












Adding ultra sonic sensor

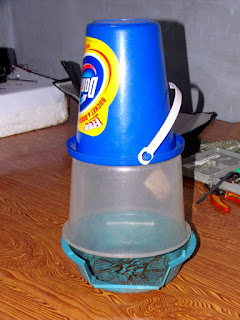

before spray painting






Arduino main code



//Libraries
#include <AFMotor.h>

//Objects
AF_DCMotor motorRight(1, MOTOR12_64KHZ); // create motor #1, 64KHz pwm
AF_DCMotor motorLeft(3, MOTOR12_64KHZ);  // create motor #3, 64KHz pwm

//Constants and variable
char dataIn = 'S';
char determinant;
char det;
int vel = 0; //Bluetooth Stuff


void setup() {
  Serial.begin(9600); // set up Serial library at 9600 bps

  //Initalization messages
  Serial.println("ArduinoBymyself - ROVERBot");
  Serial.println("     AF Motor test!");

  //turn off motors
  motorRight.setSpeed(0);
  motorLeft.setSpeed(0);
  motorRight.run(RELEASE);
  motorLeft.run(RELEASE);



}

void loop() {
  det = check(); //call check() subrotine to get the serial code

  //serial code analysis
  switch (det){
    case 'F': // F, move forward
    motorRight.setSpeed(vel);
    motorLeft.setSpeed(vel);
    motorRight.run(FORWARD);
    motorLeft.run(FORWARD);
    det = check();
    break;

    case 'B': // B, move back
    motorRight.setSpeed(vel);
    motorLeft.setSpeed(vel);
    motorRight.run(BACKWARD);
    motorLeft.run(BACKWARD);
    det = check();
    break;

    case 'L':// L, move wheels left
    motorRight.setSpeed(vel);
    motorLeft.setSpeed(vel/4);
    motorRight.run(FORWARD);
    motorLeft.run(FORWARD);
    det = check();
    break;

    case 'R': // R, move wheels right
    motorRight.setSpeed(vel/4);
    motorLeft.setSpeed(vel);
    motorRight.run(FORWARD);
    motorLeft.run(FORWARD);
    det = check();
    break;

    case 'I': // I, turn right forward
    motorRight.setSpeed(vel/2);
    motorLeft.setSpeed(vel);
    motorRight.run(FORWARD);
    motorLeft.run(FORWARD);
    det = check();
    break;

    case 'J': // J, turn right back
    motorRight.setSpeed(vel/2);
    motorLeft.setSpeed(vel);
    motorRight.run(BACKWARD);
    motorLeft.run(BACKWARD);
    det = check();
    break;

    case 'G': // G, turn left forward
    motorRight.setSpeed(vel);
    motorLeft.setSpeed(vel/2);
    motorRight.run(FORWARD);
    motorLeft.run(FORWARD);
    det = check();
    break;

    case 'H': // H, turn left back
    motorRight.setSpeed(vel);
    motorLeft.setSpeed(vel/2);
    motorRight.run(BACKWARD);
    motorLeft.run(BACKWARD);
    det = check();
    break;

    case 'S': // S, stop
    motorRight.setSpeed(vel);
    motorLeft.setSpeed(vel);
    motorRight.run(RELEASE);
    motorLeft.run(RELEASE);
    det = check();
    break;



  }
}

//get bluetooth code received from serial port
int check(){
  if (Serial.available() > 0){// if there is valid data in the serial port
    dataIn = Serial.read();// stores data into a varialbe

    //check the code
    if (dataIn == 'F'){//Forward
      determinant = 'F';
    }
    else if (dataIn == 'B'){//Backward
      determinant = 'B';
    }
    else if (dataIn == 'L'){//Left
      determinant = 'L';
    }
    else if (dataIn == 'R'){//Right
      determinant = 'R';
    }
    else if (dataIn == 'I'){//Froward Right
      determinant = 'I';
    }
    else if (dataIn == 'J'){//Backward Right
      determinant = 'J';
    }
    else if (dataIn == 'G'){//Forward Left
      determinant = 'G';
    }
    else if (dataIn == 'H'){//Backward Left
      determinant = 'H';
    }
    else if (dataIn == 'S'){//Stop
      determinant = 'S';
    }
    else if (dataIn == '0'){//Speed 0
      vel = 0;
    }
    else if (dataIn == '1'){//Speed 25
      vel = 25;
    }
    else if (dataIn == '2'){//Speed 50
      vel = 50;
    }
    else if (dataIn == '3'){//Speed 75
      vel = 75;
    }
    else if (dataIn == '4'){//Speed 100
      vel = 100;
    }
    else if (dataIn == '5'){//Speed 125
      vel = 125;
    }
    else if (dataIn == '6'){//Speed 150
      vel = 150;
    }
    else if (dataIn == '7'){//Speed 175
      vel = 175;
    }
    else if (dataIn == '8'){//Speed 200
      vel = 200;
    }
    else if (dataIn == '9'){//Speed 225
      vel = 225;
    }
    else if (dataIn == 'q'){//Speed 255
      vel = 255;
    }
    else if (dataIn == 'U'){//Back Lights On
      determinant = 'U';
    }
    else if (dataIn == 'u'){//Back Lights Off
      determinant = 'u';
    }
    else if (dataIn == 'W'){//Front Lights On
      determinant = 'W';
    }
    else if (dataIn == 'w'){//Front Lights Off
      determinant = 'w';
    }
    else if (dataIn == 'V'){//Horn On
      determinant = 'V';
    }
    else if (dataIn == 'v'){//Horn Off
      determinant = 'v';
    }
    else if (dataIn == 'X'){//Extra On
      determinant = 'X';
    }
    else if (dataIn == 'x'){//Extra Off
      determinant = 'x';
    }
  }
  return determinant;
}



                 Click here Android app used to control the robot

                              Arduino obstacle avoider code



#include <AFMotor.h> //import your motor shield library
#define trigPin 14 // define the pins of your sensor
#define echoPin 15
AF_DCMotor motor1(1,MOTOR12_64KHZ); // set up motors.
AF_DCMotor motor2(3, MOTOR12_8KHZ);
void setup() {
  Serial.begin(9600); // begin serial communitication
  Serial.println("Motor test!");
   pinMode(trigPin, OUTPUT);// set the trig pin to output (Send sound waves)
  pinMode(echoPin, INPUT);// set the echo pin to input (recieve sound waves)
  motor1.setSpeed(230); //set the speed of the motors, between 0-255
motor2.setSpeed (255);
}
void loop() {

   long duration, distance; // start the scan
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2); // delays are required for a succesful sensor operation.
  digitalWrite(trigPin, HIGH);

  delayMicroseconds(10); //this delay is required as well!
  digitalWrite(trigPin, LOW);
  duration = pulseIn(echoPin, HIGH);
  distance = (duration/2) / 29.1;// convert the distance to centimeters.
  if (distance < 45)/*if there's an obstacle 25 centimers, ahead, do the following: */ {
   Serial.println ("Close Obstacle detected!" );
Serial.println ("Obstacle Details:");
Serial.print ("Distance From Robot is " );
Serial.print ( distance);
Serial.print ( " CM!");// print out the distance in centimeters.

Serial.println (" The obstacle is declared a threat due to close distance. ");
Serial.println (" Turning !");
    motor1.run(FORWARD);  // Turn as long as there's an obstacle ahead.
    motor2.run (BACKWARD);

}
  else {
   Serial.println ("No obstacle detected. going forward");
   delay (15);
   motor1.run(FORWARD); //if there's no obstacle ahead, Go Forward!
    motor2.run(FORWARD);
  }

}

Circuits for making fire alarm, gas alarm, fm transmitter, smoke alarm

Fire alarm -


Gas alarm -



Smoke alarm -


FM Transmitter -
